- Professional Line

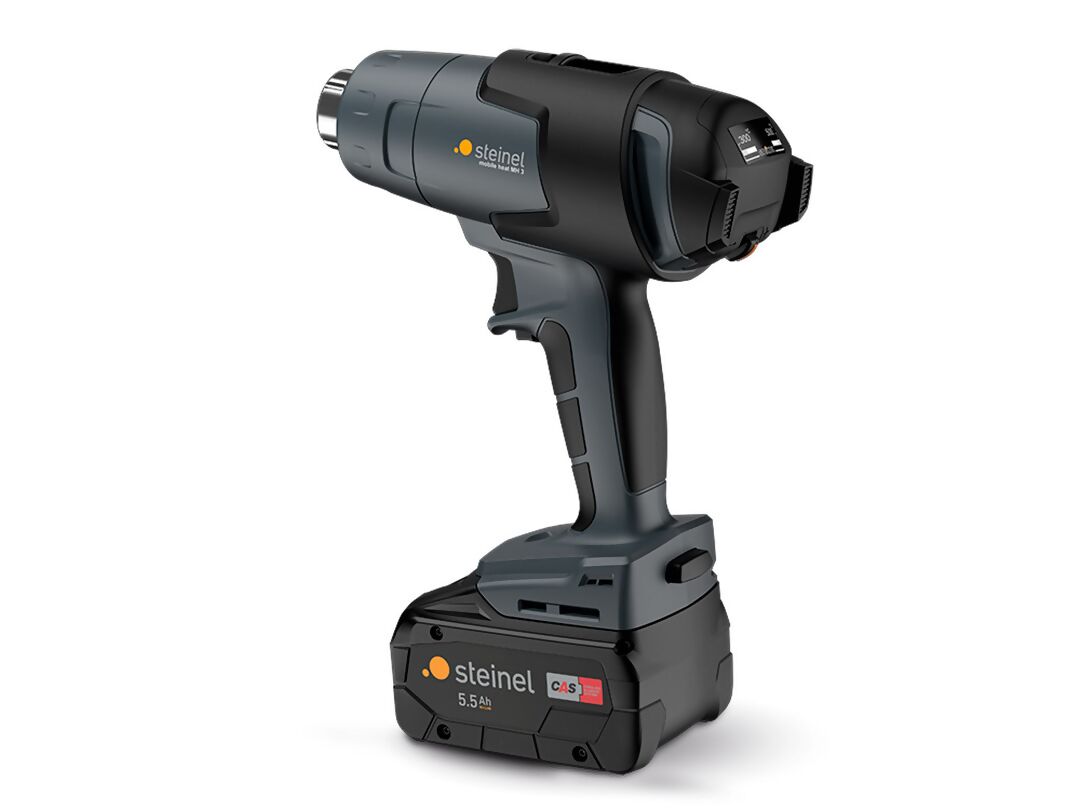

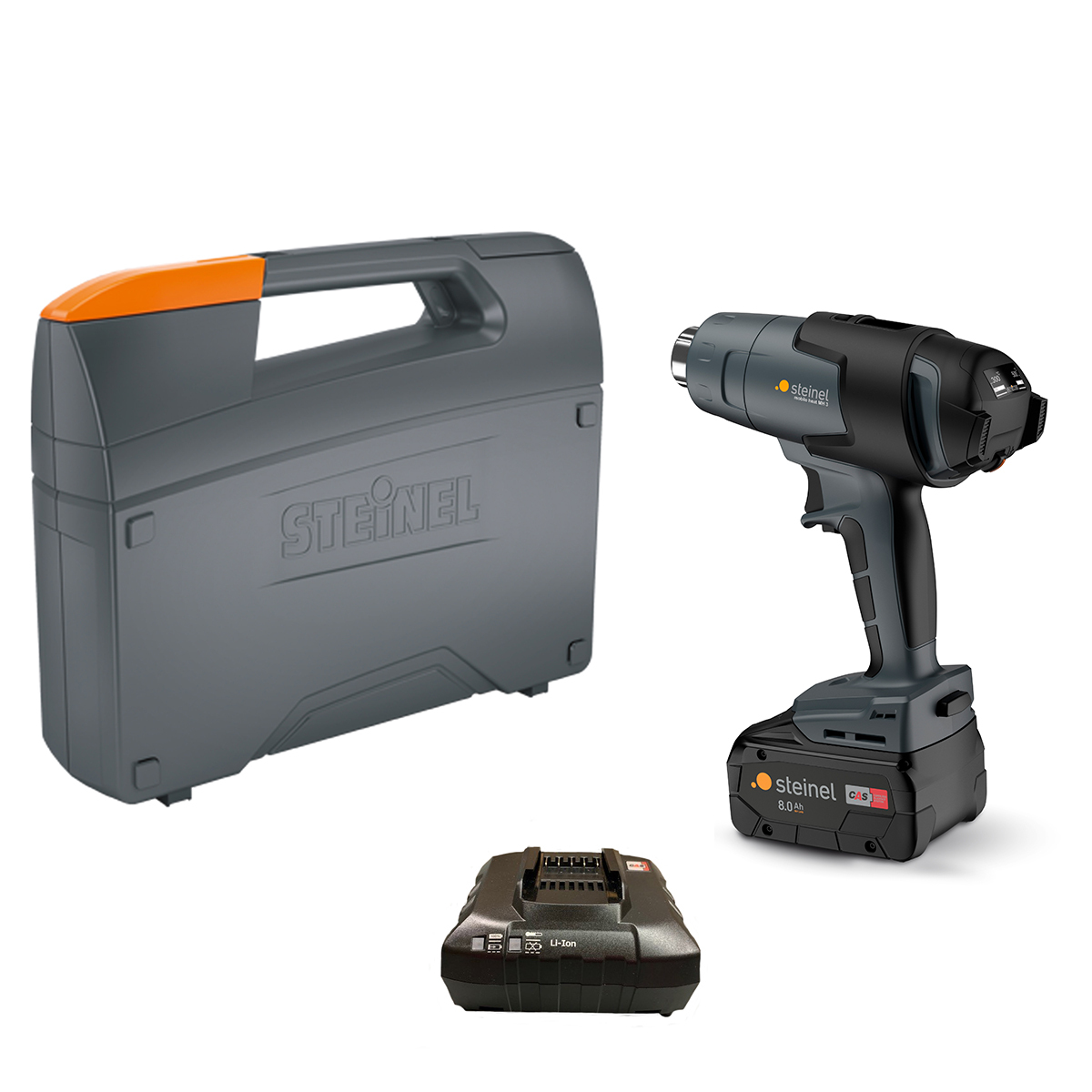

Mobile Heat 3 with Case, 8.0 Ah Battery & Charger

- Professional Line

Mobile Heat 3 with Case, 8.0 Ah Battery & Charger

EAN 18139849049
  • Rechargeable Lithium-Ion battery
  • Wide range of configuration options (see specs)
  • Trigger lock
  • LED illumination on tool base
  • Compatible with standard push-on nozzles and heat guard
  • You're watching:
  • You're watching:

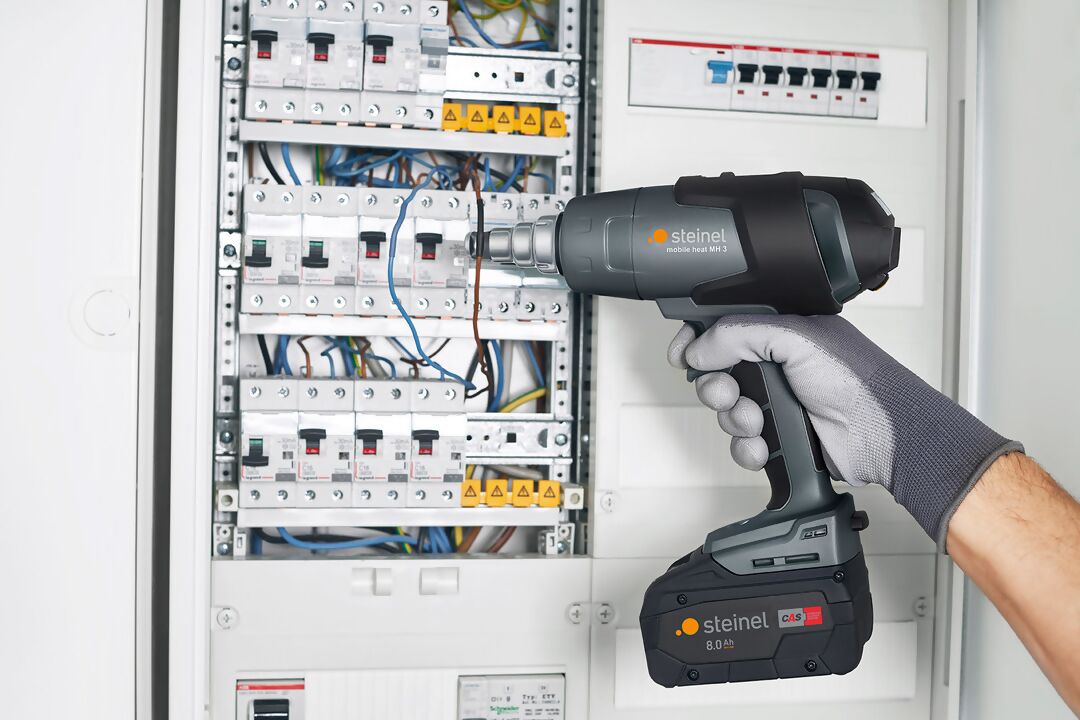

The Mobile Heat series are ideal for welding on-site repair patches.

Technical Specifications
series 3
CAS-Alliance (Metabo)
300°C / 500 °C
2 stage temperature adjustment
200 l/min.
Suitable for pluggable nozzles
CE

General information

European Article Number (EAN)
18139849049
Temperature
300 – 500 °C
Airflow rate
200 l/min
Temperature setting
2-stage
Settings made via
multiple-stage switch
Temperature display
LED segment display
Airflow control
Settings
Programming function
No
Loc function
No
Residual heat indicator
No
Cool function
No
Motor, type
Brush motor
Heating element
Ceramic heating element
Rechargeable battery voltage
18 V
Interface
18V CAS Metabo rechargeable battery
Function, hanger
Yes
Function, life expectancy, motor
500 h
Replaceable heating element
No
Temperature scanner
No
Fine dust filter
No
Thermal cut-out
Yes
Thermostat
No
ESD
No
Nozzle receiver, type
34
PU1, net weight
2,317 kg

Electrical equipement

Mains power supply
18 V
Power supply, detail
Rechargeable lithium-ion battery
Output
600 W

General

Dimensions (L x W x H)
225 x 72 x 204 mm
Manufacturer's Warranty
1 year
PU1, EAN
18139849049
Product Details
  • Image
    Optimised weight balance
  • Image

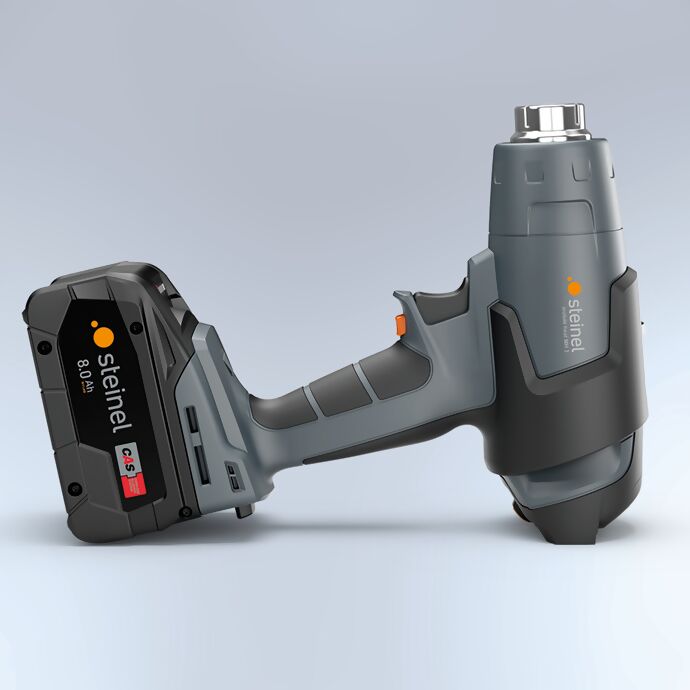

    Non-slip standing surface
  • Image

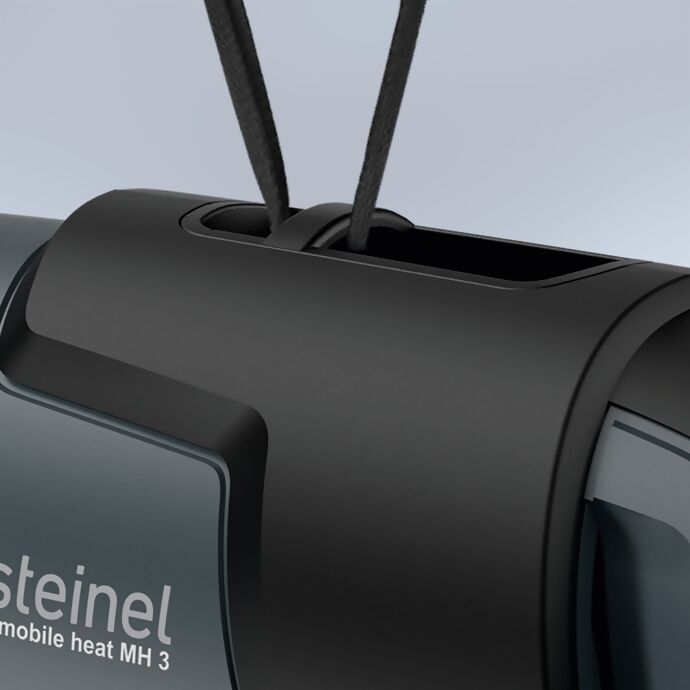

    Hanging ring
  • Image

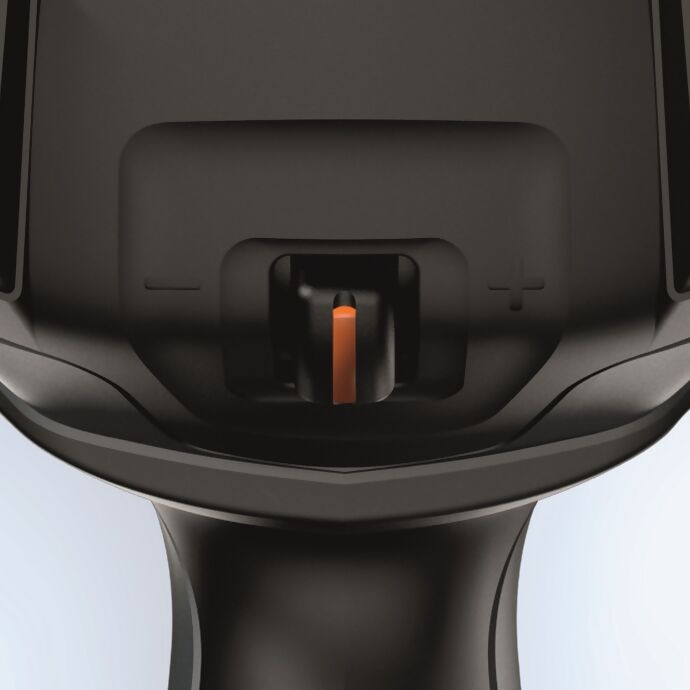

    Temperature easy to set by joystick
  • Image

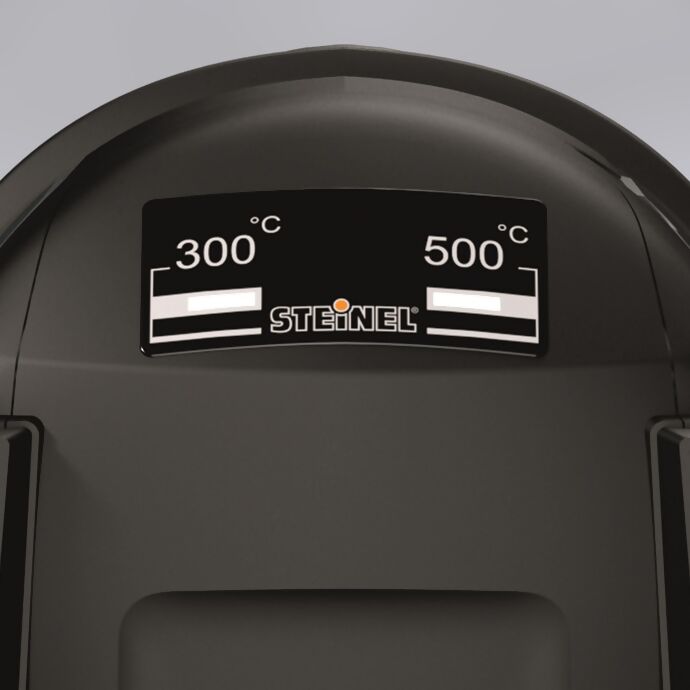

    Information display always in view
  • Image
    Suitable for push-on "standard nozzles"
  • Image

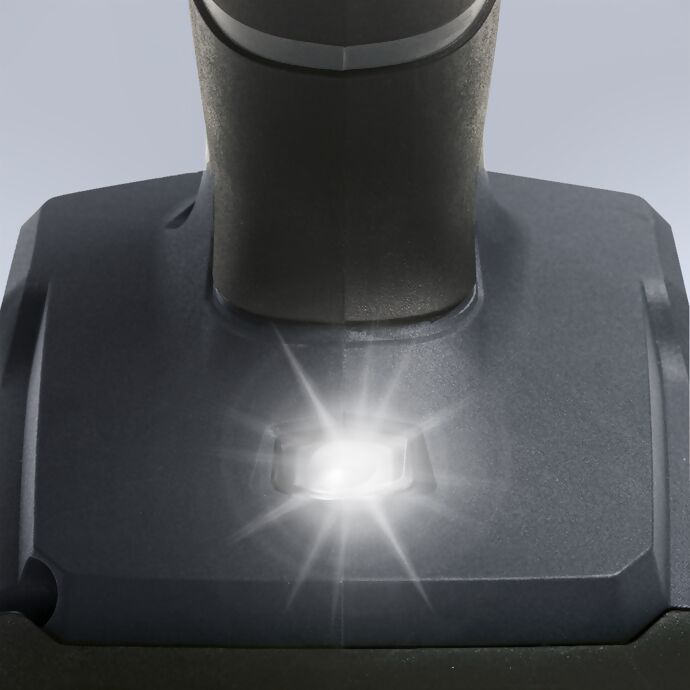

    Integrated LED work light
